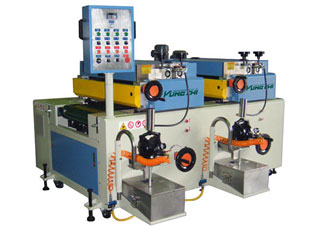

YC-934
雙座塗佈機
ROLLER COATER(PVC BOARD)
特性：
- 採用機械塗佈，亦可獲致完全塗佈效果、省時、省力。

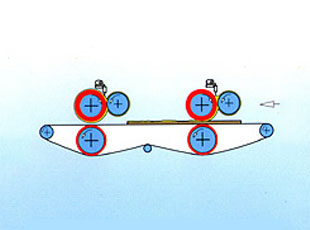

- 備有兩組UV塗佈輪，可同時使用或單獨使用。
- UV塗佈輪換裝容易，僅需將UV塗佈輪之固定套拆下即可換裝、省時、省力。
- UV塗料回收迅速方便。
- 送料速度可配合塗佈速度調整。
- 本機適於木器合板塑膠噴射出門、窗及其他四方形、長方形之壁板之塗佈。
FEATURES：
- Adopted mechanic spreading which can be achieved the spreading effectness perfectly,time & labour saving.
- There equipped two sets UV spreading roller and employed in dual or single by selected.
- Easy for replacing the spreading roller which is just to dissembly the locking bushing of UV spreading roller and replaced , time & labour saving.
- UV spreading material convenient & rapid for recollecting.
- The feeding speed can be adjusted couple with the spreading speed.
- This machine is suitable for veneer board, plastic injectioned & extruded door, wall panel tec., after ashing making spreading use.
規格SPECIFICATIONS：
| 型式Model | YC-934 |
|---|---|
| 塗佈速度Spreading speed | 5~25m/min |
| 有效塗佈寬度Eff.Spreading Width | 300mm |
| 有效高度Eff.Spreading height | 3~40m/m |
| 塗佈輪尺寸Spreading roller size | ψ240×410mm | 動力Power | 5HP |
| 電壓Voltage | 220V/380V/440V客戶指定on request |
| 機械尺寸Machine size | 2220×1360×1300mm |
| 裝箱尺寸Measurement | 2370×1520×1460mm |
| 淨重/毛重N.W./G.W. | 800kg/1200kg |
| 型式Model | YC-934 |
|---|---|
| 塗佈速度Spreading speed | 5~25m/min |
| 有效塗佈寬度Eff.Spreading Width | 600mm |
| 有效高度Eff.Spreading height | 3~40m/m |
| 塗佈輪尺寸Spreading roller size | ψ240×710mm | 動力Power | 5HP |
| 電壓Voltage | 220V/380V/440V客戶指定on request |
| 機械尺寸Machine size | 2220×1698×1300mm |
| 裝箱尺寸Measurement | 2370×1850×1460mm |
| 淨重/毛重N.W./G.W. | 1200kg/1700kg |
| 型式Model | YC-934 |
|---|---|
| 塗佈速度Spreading speed | 5~25m/min |
| 有效塗佈寬度Eff.Spreading Width | 1000mm |
| 有效高度Eff.Spreading height | 3~40m/m |
| 塗佈輪尺寸Spreading roller size | ψ240×1200mm | 動力Power | 5HP |
| 電壓Voltage | 220V/380V/440V客戶指定on request |
| 機械尺寸Machine size | 2220×2190×1300mm |
| 裝箱尺寸Measurement | 2370×2330×1460mm |
| 淨重/毛重N.W./G.W. | 1800kg/2400kg |
| 型式Model | YC-934 |
|---|---|
| 塗佈速度Spreading speed | 5~25m/min |
| 有效塗佈寬度Eff.Spreading Width | 1300mm |
| 有效高度Eff.Spreading height | 3~40m/m |
| 塗佈輪尺寸Spreading roller size | ψ240×1410mm | 動力Power | 5HP |
| 電壓Voltage | 220V/380V/440V客戶指定on request |
| 機械尺寸Machine size | 2220×2360×1300mm |
| 裝箱尺寸Measurement | 2370×2520×1460mm |
| 淨重/毛重N.W./G.W. | 2200kg/2800kg |
